Optically ClearGeneral FormulationsWindow & Specialist Vinyls

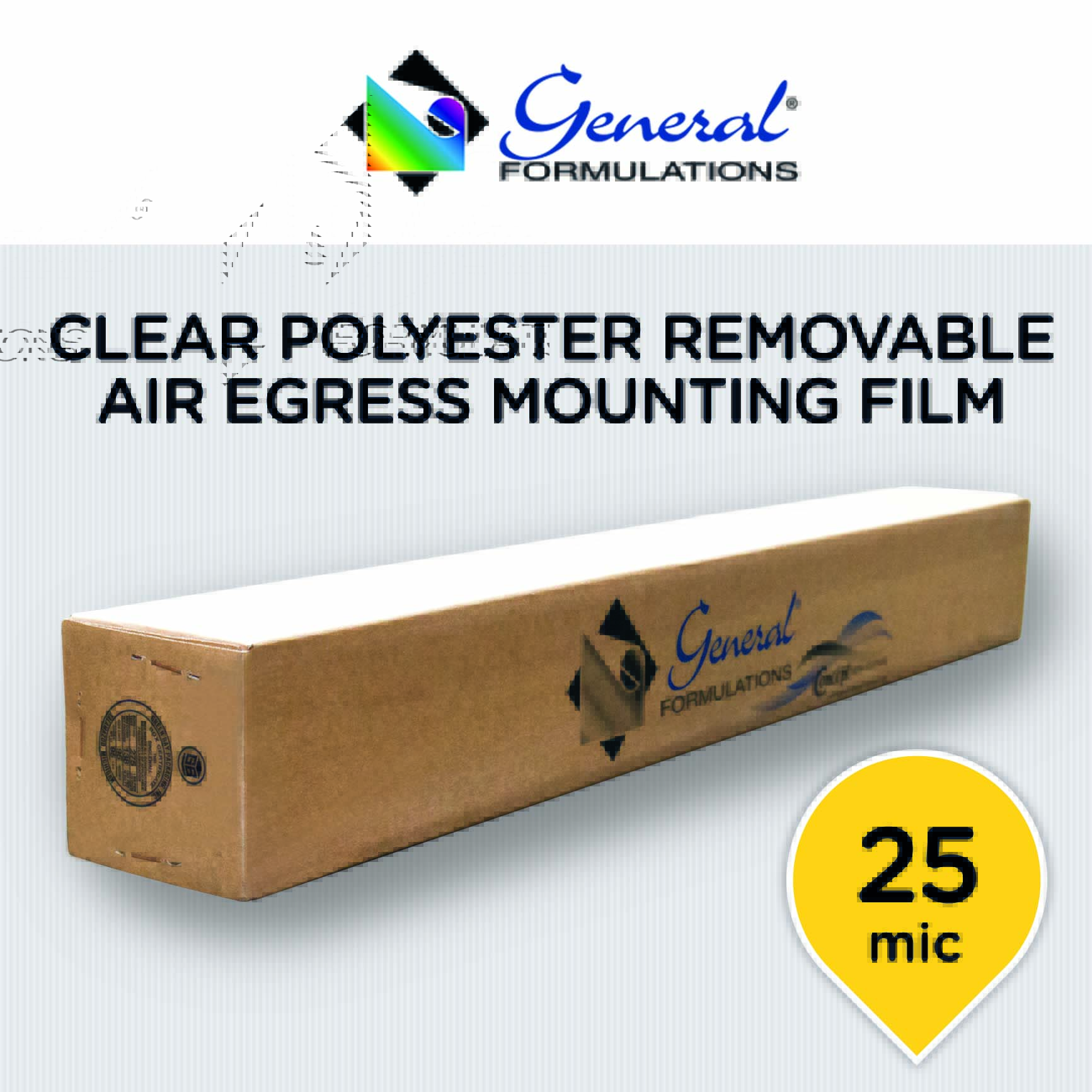

General Formulations 116 – 25mic Clear Polyester Mounting Film, Clear Removable Adhesive, Air Release Liner


GF 116 is a 25mic clear polyester mounting film with a clear removable adhesive and air release liner for ease of application.

Designed to turn digital prints into self-adhesive graphics for application to glass surfaces. These decals can be removed without leaving any residue!

Order by 4:00PM for
next day delivery
00hrs 00mins 00seconds


This product is only available to printers and signmakers
Log-in to your account Sign-up for an account

Product Information

Expand all

Description

116 Series is a double-coated pressure sensitive 25 mic clear polyester film with 200-4985 permanent adhesive on one side and 200-4999 removable adhesive on the other side. Concept®116 has a 115 gsm clear air egress PET liner printed with “Remove to Expose Adhesive” on the removable adhesive side. This air egress liner assures smooth bubble free application. The clear liner allows the graphics to be viewed after lamination with 116 Series. This product is designed for laminating thin flexible plastic films and papers commonly found in graphics for temporary application to glass. The permanent AP adhesive is protected by a 35 gsm clear polyester liner. This clear mounting film can be laminated by the cold laminating process without the addition of heat.

Printing & Application Guidelines

116 Series is designed to produce two sided decals using digital prints, screen printed and other printed images for application to glass. These decals are cleanly removable. In all cases the substrates must be clean and free of dust, dirt and oil. This product is not recommended for tinted or laminated windows. May be used on substrates other than glass but your specific application must be thoroughly tested before production. 116 Series is intended for graphic film and paper laminations and it is not a structural mounting tape.

Completely evaporate inkjet solvents before laminating mounting film. Failure to do so may facilitate solvent penetration resulting in vinyl degradation.

Product Chart

Film Film Type Clear Polyester
Film Thickness (mils/μm) 25 (+/- 10%)
Film Weight (gsm) 32
Gloss (60°) N/A
Opacity (%) N/A
Dimensional Stability N/A
Adhesive Adhesive Type Solvent Acrylic (Remov. Side) / Emulsion Acrylic (Perm. Side)
Adhesive Thickness (μm) Remov. Side: 15-20 | Perm. Side: 20-25
Adhesive Color Clear
Peel Strength on Stainless Steel (N/25mm) 15 min Remov. Side: 2.2-4.4 | Perm. Side: 44
Peel Strength on Stainless Steel (N/25mm) 24 hrs Remov. Side: 3.5-5.3 | Perm. Side: 9.2
Peel Strength on Glass (N/25mm) 15 min Remov. Side: 3.1-5.7
Peel Strength on Glass (N/25mm) 24 hrs Remov. Side: 3.1-5.7
Liner Liner Weight (gsm) N/A
Liner Type Clear Printed Polyester/Air-egress (Remov. Side) / Clear Polyester (Perm. Side)
Liner Thickness (μm) Remov. Side: 114 | Perm. Side: 38
Release Force @ 300” / min (g/2”) Remov. Side: 55-85 | Perm. Side: 20-30
Performance Guidance Application Temperature >+4.4 °C
Service Temperature -40 °C to 82.2 °C
Shelf Life 1 year
Storage Temp / Rel. Humidity 21.1 °C / 50%
Outdoor Durability 1 year
Removability 6 months
